APO.01

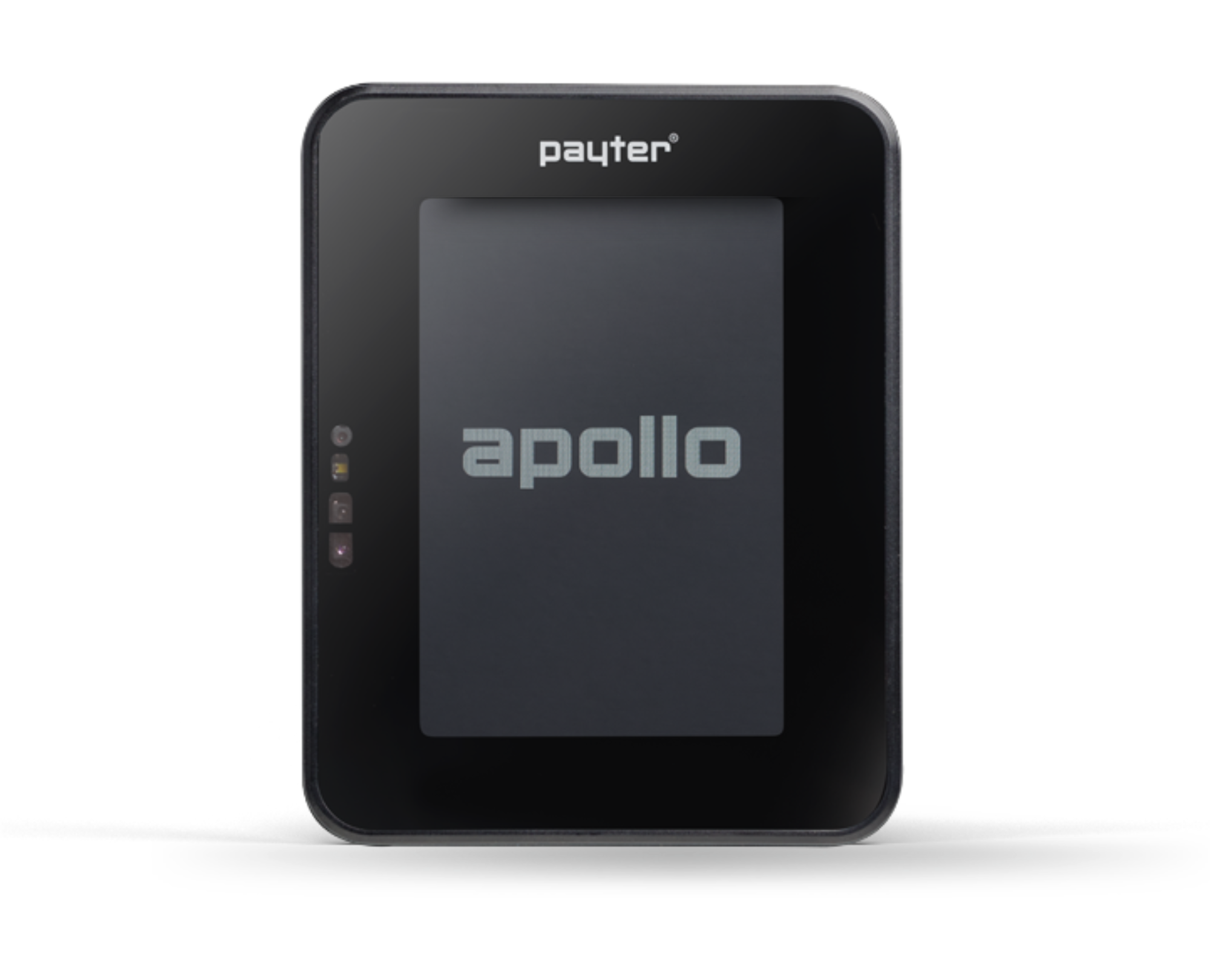

Apollo
IP65 outdoor, contactless with PIN entry. The default for unattended environments where there is no EVA cutout.
PCI PTS 6.xIP65−20 °C → +55 °CContactless + PIN
Spec sheet →No app, just tap

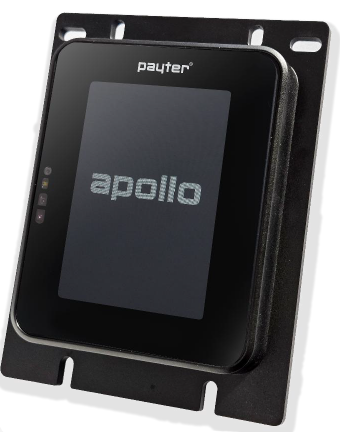

Precision payment hardware for unattended environments.
Apollo X. Integrated deep frame. IP65 · IK09. PCI PTS 6.x. Built so it survives a winter on a vacuum station and a summer in a coffee bar without service intervention.
IP65 · IK09
Outdoor + vandal-rated
PCI PTS 6.x
EMVCo certified
−20°C → +55°C
PCI PTS 6.x · EMVCo
Integrated frame
Mounts in EVA cutout · no extras
Specification
Read the spec sheet, not the marketing.
Part number
APX.01 / APX.01.4E
Connectivity
LAN · WiFi · 4G
Card schemes
Visa · Mastercard · Amex · Discover · Diners
Mounting
Integrated deep frame · EVA cutout · Direct stud mount
Operating temp
−20 °C to +55 °C
Certifications
PCI PTS 6.x · EMVCo · CE · FCC · cURus · RoHS
Dimensions
133.3 × 100.3 × 35.9 mm
Battery (replaceable)
30 months total · 66 months with extension
The rest of the family
One platform. Multiple silhouettes.
APM.01 / APM.01.4E / APM.01.4U

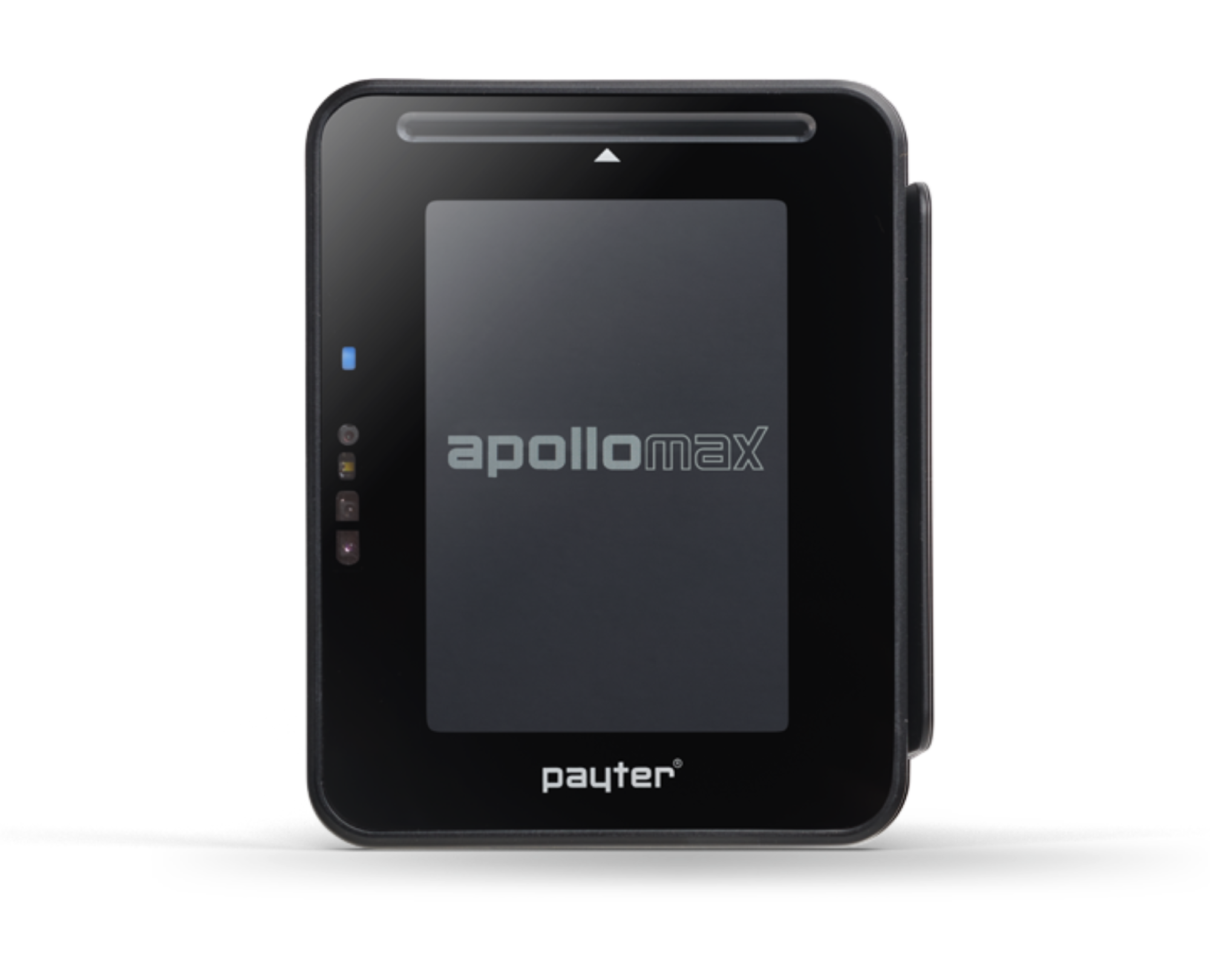

Apollo MAX
Indoor terminal that adds chip and magstripe to the Apollo platform. The right call when older cards still need to read.
PCI PTS 6.xIndoorContactless · Chip · SwipeMDB plug-and-play
Spec sheet →POL.01 / POL.01.4E / POL.01.4U

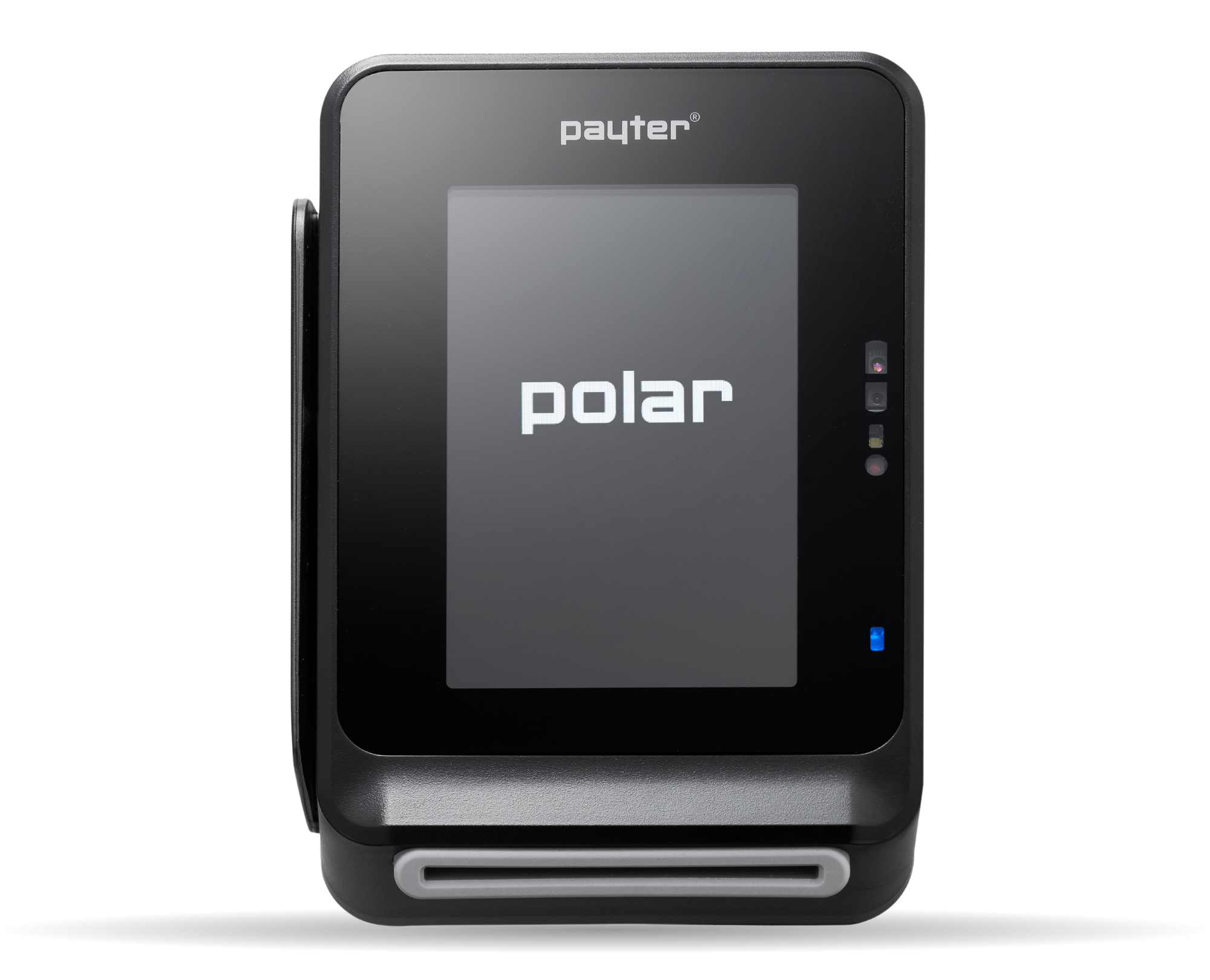

Apollo Polar
IP54, IK09, −35 °C to +55 °C. Contactless, chip, and magstripe for outdoor environments where fuel-card swipes are still in use.
PCI PTS 6.xIP54 · IK09−35 °C → +55 °CContactless · Chip · Swipe
Spec sheet →Audiences
Built for engineering, sales, and software teams.
01 · for OEMs
Machine manufacturers.

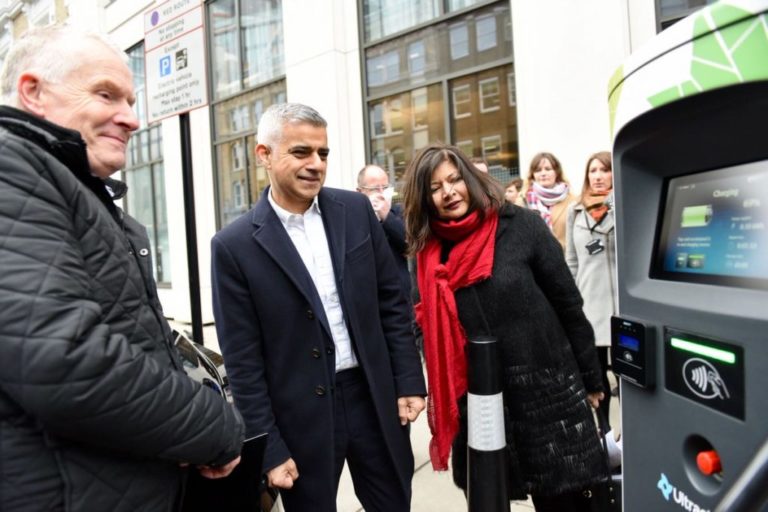

Build Payter terminals into EV chargers, vending machines, parking gates, kiosks, ticketing — any unattended equipment. EVA cutout, integrated deep frame, MDB plug-and-play.
- EVA cutout + integrated deep frame on Apollo X
- MDB / RS232 / TCP-IP / USB-C interfaces

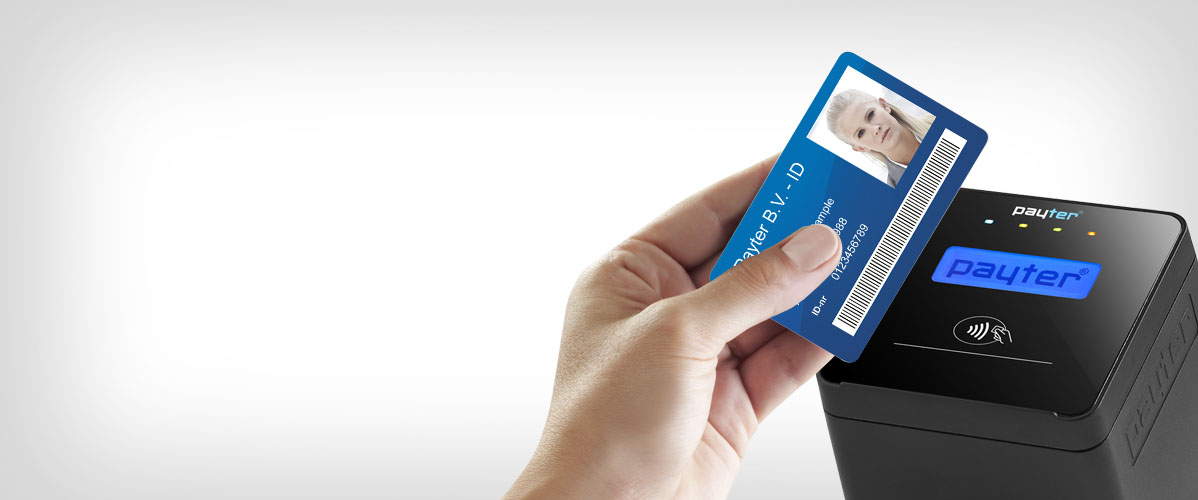

- Closed-loop and RFID card support
02 · for Operators
Operators & end customers.

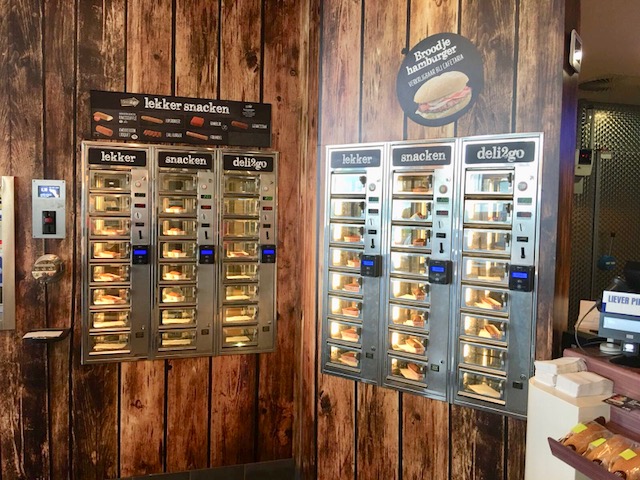

Run an EV network, a vending route, a coffee fleet, a laundromat estate, a car wash, a vacuum station, a parking lot, a hospitality group, or a charity campaign. Order terminals direct, track the fleet in MyPayter, plug into the acquirer you already use.
- One terminal across every unattended environment
- MyPayter portal for fleet visibility and reporting
- Direct ordering · EU shipping in 5—12 working days
03 · for Integrators
Software integrators.
Build closed-loop schemes, loyalty wallets, or proprietary card systems on Payter hardware. Cloud API, local Payter Session Protocol, OCPI 2.2.1 / 2.3.0, MDB, Autoscan + Pulse.
- Cloud API · Local PSP · OCPI 2.2.1 / 2.3.0
- Autoscan + Pulse for fixed-price flows
- MDB plug-and-play and closed-user-group hosts
Industries
Built for every machine that takes a tap.
Integrations
Six ways to integrate.
Payter Cloud API
Cloud / CPS
Terminal connects to the Payter Cloud API. The CSMS controls sessions, branding, and pricing. One terminal can manage multiple chargers.
Documentation →Payter Session Protocol
Local / PSP
Direct TCP-IP, USB-C, or RS232 to the charger or machine controller. Fast, offline-capable, no internet required.
Documentation →OCPI 2.2.1 / 2.3.0
OCPI
OCPI 2.2.1 and 2.3.0 with Direct Payment modules. For CSMS providers and backend developers.
Documentation →MDB Level 1—3
MDB
Industry-standard vending protocol. Configured by Payter on request; no integration work required.
Documentation →Standalone fixed-price
Autoscan

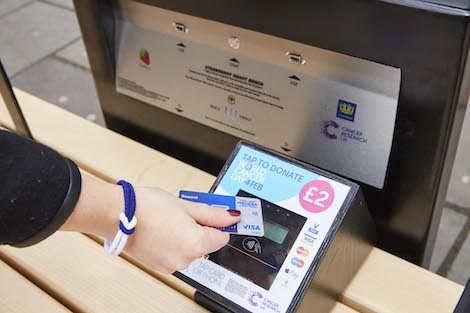

Standalone fixed-price mode. The terminal operates without a host device — charity tins, donation points, air and water dispensers, car wash, laundry. Up to eight configurable products, each with its own label and price.
Documentation →Pulse output
Pulse output
An electrical signal on successful payment that mimics a coin acceptor — so the simplest hosts can act on a tap without any software change. Pairs with Autoscan or Cloud (since February 2026).
Documentation →Also: Payter Transaction Host for closed user groups, loyalty wallets, and prepaid card schemes. Documentation on request ↗
In production across 40+ countries
40+
Countries deployed in
100,000+
Terminals in the field
~20
Years in payments
13+
Verticals served
Documentation
Engineered for engineers.
Cloud API, Payter Session Protocol, OCPI 2.2.1 and 2.3.0, MDB, Autoscan, Pulse. Swagger and reference docs available on request. Kick-off call, FAT test, then live.
Read the docs ↗POST /v1/sessions
Authorization: Bearer ${PAYTER_API_KEY}
{
"terminal_id": "APX-01-A1B2C3",
"amount": { "currency": "EUR", "value": 1850 },
"metadata": { "session_ref": "ev-2026-05-15-7741" }
}
→ 201 Created
{
"session_id": "ses_qy8h2k4f3",
"status": "ready_to_tap"
}Get started
Build with Payter.
Order a test terminal, schedule an integration kick-off, or request a formal quote. Engineering responds Monday to Friday, 09:00 to 17:00 UK time.
